1500/1700℃ Well type sintering furnace
product introduction：
The integrated shape design, coupled with the minimalist control mode, makes the equipment has a very high cost performance.
nThe equipment adopts ferro – chromium aluminum alloy heating wire element doped with molybdenum.
nIt can be used for high temperature sintering, melting and heat treatment of metal alloy, nonmetal material and ceramic material.
Previous
Next
Technical Specification:
 |
n
1. Adopt contactless SCR module to improve the stability of system control;
n 2. Ring distribution of chimed gold heating wire in the furnace to ensure the temperature uniformity in the furnace;
n 3. The fire-resistant insulation material made by advanced technology has low heat loss and effectively reduces the power of the equipment;
n 4. Modular mechanism, durable and easy to maintain;
n 5. Touch screen operation, intuitive display of temperature curve;
n 6. Other furnace sizes can be communicated and customized;
|
|||||
| model | NBD-G1500-12IT | NBD-G1700-12IT | ||||
| Electrical specifications | AC220V 2.3KW | AC220V 2.8KW | ||||
| maximum temperature | 1500℃（<1 hour） | 1700℃（<1小时） | ||||
| Continuous temperature | 1450℃ | 1650℃ | ||||
| Maximum heating rate | ≤20℃/min | |||||
| chamber size | Φ120*160mm | Φ120*160mm | ||||
| control system |  |
1. Centralized control of LCD screen, clear heating process; n2. 15 temperature curves can be stored in advance to avoid the trouble caused by repeated Settings of different experimental processes; n3. It has the functions of over temperature alarm, broken couple prompt, leakage protection and so on. |
||||
| temperature control accuracy | +/- 1℃ | |||||

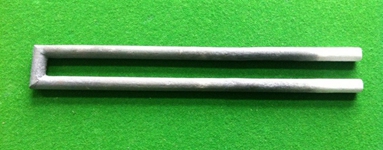

| heating element |  High purity silicon carbon rod |
 silicon molybdenum rod |
||||
| net weight | 90KG | |||||
| attention | 1. When the furnace temperature of the equipment is ≥300℃, do not open the furnace to avoid damage; n2. The slight cracks caused by continuous use of the furnace are normal phenomena and do not affect the normal use of the equipment; |
|||||
| service support | 1 year warranty, lifetime support (warranty does not include consumable parts). | |||||
